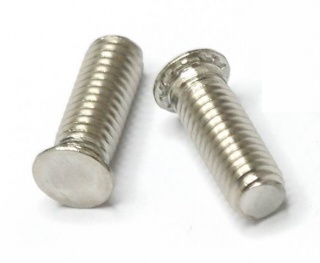

1. Product Name: Self Clinching Stud
2. Part Code:  FHS
3. Material: Stainless Steel
4. Thread Size: M2.5 to M8 (mm),  #2-56 to 5/16-18 (inch)
5. Type FHS is recommended for use in steel or aluminum sheets HRB70 or less.

Self Clinching Studs are installed by placing them in properly sized holes in the sheets and squeezing into place with any standard press. The squeezing action embeds the head of the stud into the sheet. The metal displaced by the head flows smoothly and evenly around the ribs and into the annular groove - creating a flush head assembly and securely locking the stud into the sheet with high torque-out and pushout resistances. Also available unthreaded on special order.
