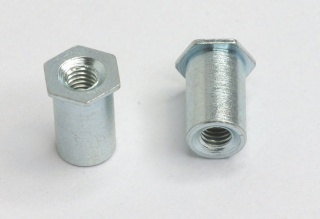

1. Product Name: Self Clinching Thru-hole Standoff
2. Part Code:  SO
3. Material: Steel, Zinc Finish, Rohs
4. Thread Size: M3 to M5 (mm),  #4-40 to #10-32 (inch)
5. Length: 3mm to 25mm

Through Hole Self Clinching Standoffs provide a strong torque resistant captivated female thread in a spacer configuration for thin panel applications.
As minimal surface finishing is required after installation, this fastener installs fully flush from the back of the
panel. The hexagon head provides excellent torque out and push out resistance.
